mtbiker님께 또다른질문..

디스크싸이클로스2010.07.02 21:43조회 수 6393댓글 1

    • 글자 크기


마음에드는 프레임이있어 해외에서 구입한후 조립을해보려합니다.(싸이클로크로스)



구입하려는 프레임입니다.



http://www.kinesisdecade.co.uk/product.php?id=1



http://road.cc/content/news/4135-exclusive-just-kuk-tripster





두번째 주소에 장착된 타이어는 32c크기인데요, 국내에서는 그나마 구하기쉬운게 35c타이어인데 프레임최고한계가 32c인건지, 모르겠습니다..



첫번째 주소엔  이렇게적혀있긴한데,

There is plenty of clearance for larger road tyres [700c x 33 and 26” x 1.5] and the disc brakes mean swapping wheels sizes is not a problem.



휠도마찬가지로, 프레임만 상관없다면 35c의 사이클로크로스휠로 35c타이어를 장착하고싶은데



32c까지만 가능한것인지 잘 아시는분 도움 부탁드려요..





기왕이면 두번째주소에나온 완차모양그대로 조립을해보고싶은데, 흰색휠셋이나 흰색타이어, 이런 흔하지않은 부품들은 어디서구해야될까요??그것도문제입니다. 잘 아시는분 도움부탁드려요..



긴글 읽어주셔서감사합니다.



We saw the new Decade Tripster from Kinesis UK at the CORE bike show back in February and we've been itching to get our hands on it since. Now we have.

The Tripster is one of what seems to be a new brand of British designed bikes (Cotic's Roadrat is another) ultra-versatile machines that can be turned with a tweak or a change of tyre or wheel into something completely different. The once constant being that however you build them up they are really good to ride.

KuK Tripster gallery

What we have here is essentially a multi-format fast commuting bike. The Tripster is all about being fast, precise and adapatable – in fact it's the motto on the top tube. The idea is to have a supremely versatile bike that is more than just a jack of all trades – it's a platform that can be built up in one of many ways and will do the business whatever role you build it up for.

You can set it up with 700c wheels and drops, or as a 26in wheeled machine with slicks, or as a all terrain commuter/weekend racer with 700x33 cross tyres. Or any combination of the three that suits. We've got the all terrain commuter build in Aqua Blue (it also comes in black) and – so far it's been as far off road as the park, but in the couple of short commutes we've done on it we've been pleasantly surprised by how well those 'cross tyres perform on tarmac. Big tyres certainly are comfortable.

Built up with Shimano 105, Avid cable disc brakes and deep section rims sporting Vittoria Cross XN Pro tyres, our size 51cm (measured centre to top) test bike weighed in at 9.75Kg (21.5lb).

Around here we've always thought the the 'cross bike is the ideal 'do anything' bike platform. The Tripster's frame geometry is based on the Kinesis Crosslight frame and in true cyclo cross style features a high bottom bracket – not a bad feature at all in a fast commuting bike giving better cornering clearance and keeping the bottom bracket area well out of the way of high kerbs and the like.

Similarly the discs are run inboard to keep them out of harm's way. Like the Crosslight 4T the Tripster is made from 7005 double-butted aluminium – you wouldn't really expect anything less from a Kinesis.

The big difference in terms of geometry from the Crosslight is that the Tripster has a longer headtube for a more upright riding position. The top tube is fairly short too our frame had an effective horizontal length of 53.6cm the next size up gives a tad over 55cm.

The back end is pretty short too and our limited experience of it so it handles as you'd expect: sharp and nippy – indeed like it says on the top tube 'precise'. The other feature that really leaps out at you about the Tripster's back end is how wide it is, partly a factor of getting the disc inboard of the frame – the rear hub spacing is 135mm, which is standard on MTB frames and those rear stays wouldn't look at all out of place on a nippy little hard tail. No doubting it is all very strong, but on our smallest sized frame at least it does make for a very tight crank clearance.

Check out those rear dropouts and you'll also see proper rack and mudguard mounts and there are eyelets for the same on the frame too for a good secure fit. Likewaise the DC19 carbon fork has mudguard eyelets too. There are drillings for brakes on the frame and fork, but there are no cable mounts – so with the Tripster it's really discs or nothing.

Having ridden the disc equipped Roadrat we're not necessarily complaining – disc brakes are a fantastic braking system on a commuter bike, the lack of an alternative may slightly restrict the Tripster's versatility though in some eyes. The Roadrat scores on that point, because you can run other brakes on the other hand you can't have one in Aqua Blue like the Tripster. Whatever colour you go for the Tripster frameset can be yours for £499 which includes the carbon fork, seatpost, headset and seat clamp.

To find out more check out www.kinesisdecade.co.uk



    • 글자 크기
싸이클로크로스를 추천받고싶습니다. (by 디스크싸이클로스) 픽시관련샵.. (by 디스크싸이클로스)

댓글 달기

댓글 1
  • 두번째 모델의 드롭아웃은 예티 싸이클로크로스와 비슷하군요.



    뒷허브 간격이 135미리라면 MTB와 같은 규격입니다.

    출퇴근용, MTB, CX로 모두 활용(?)할 수 있는 프레임이네요.



    일반적인 싸이클로크로스 전용프레임이라면 타이어가 38~40~42C까지는 들어갑니다. 하지만

    이 프레임은 MTB 26인치 휠(26X1.9까지만)과 700C 휠이 동시에 장착이되며 700C의 경우 33C타이어까지만 장착이 됩니다.



    림은 픽시 관련 샵에 있을듯 합니다.



    나머지 부품들은 해외 메일오더샵이나 이베이를 검색하여 구입하시면 됩니다.

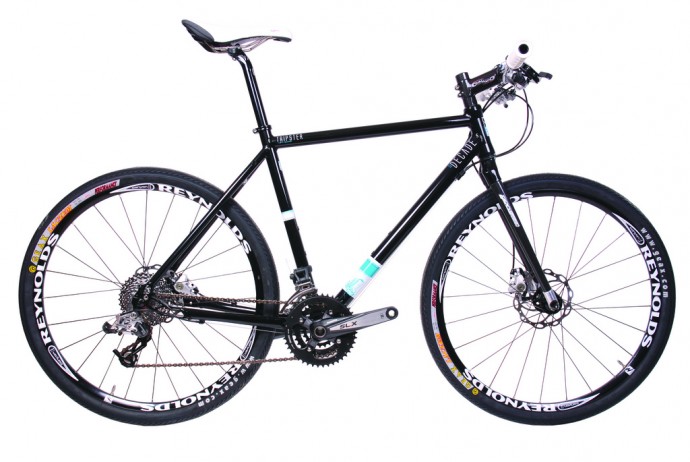

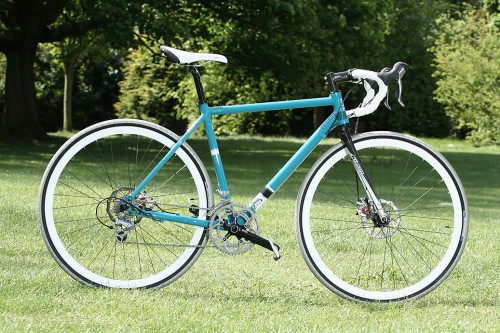

    The new Tripster is a unique frameset, designed as a ‘fast commuter’, but it can be built in a number of different ways to exactly suit the riding style of the individual. Use it with 700c wheels, road tyres and drops see here, or 26” with road tyres see here [we recommend 1.5 minimum, 1.9 max. to keep the BB height up] and flats, or 700c and flats see here, or set it up with 33x700c ‘cross tyres as a weekend racer or real on/off road commuter!

     tripster 700c.jpg tripster 26inch.jpg

    Description

    The concept of the DECADE range is based upon innovation, detailing, high quality and above all adaptability. The new Tripster is a unique frameset, designed as a ‘fast commuter’, but it can be built in a number of different ways to exactly suit the riding style of the individual. Use it with 700c wheels, road tyres and drops see here, or 26” with road tyres see here [we recommend 1.5 minimum, 1.9 max. to keep the BB height up] and flats, or 700c and flats see here, or set it up with 33x700c ‘cross tyres as a weekend racer or real on/off road commuter!

    READ A REVIEW HERE.

    The 7005 series alloy, double butted frame has it’s geometry based on our extremely successful Crosslight frames, but with tweaks such as longer head tubes to make it more ‘commuter friendly’. The frame has an ‘inboard’ mounted disc brake to keep it cleanly out of the way and the cables all run along the down tube, adding to the uncluttered look and feel of this frameset.

    [Avid cable operated calipers are ideal for this frame or Tektro ‘Lyra’ if you are on a budget].

    There is plenty of clearance for larger road tyres [700c x 33 and 26” x 1.5] and the disc brakes mean swapping wheels sizes is not a problem.

    Specially designed dropouts [135mm hub spacing] have seperate rack and mudguard mounts and there are eyeletted bridges for proper attachment.

    The new carbon DC19 fork has disc mount and mudguard eyelets. It delivers an extremely smooth ride and precise steering.

    Included in frameset price: Frame/Carbon DC19 fork/Kuk alloy post/clamp/headset.



    SPECIFICATIONS

    Material: 7005 series, double butted alloy, UltraSmooth Welds, with carbon bladed fork.

    Weight: 1700g for 54cm frame [see geom. chart for all frame weights].

    Colours: Aqua Blue. Supergloss Black.
